Webhook (New)

Please follow the steps below to configure the Webhook to receive real-time delivery reports (logs) on your Webhook (callback URL).

1. Go to MSG91 Dashboard » WhatsApp » Click on Webhook (New) » Click on Create Webhook.

2. Configure Your Webhook.

Step 1: Give your webhook a name for easy identification.

Step 2: Select WhatsApp Service & Event Type

On Request Received: Triggers when a message request is sent from your account. Includes "Sent" status logs, but does not share any data on delivery/failure status.

On Report Received: Sends real-time delivery reports, including delivery status (Sent, Failed, Delivered, and Read) and other details.

Note: Both event types send data for inbound and outbound messages.

Step 3: Enter Your Webhook (Callback) URL

• When you send bulk WhatsApp messages, the webhook will still send one log (payload) per recipient number. This means for each mobile number, you will receive a separate webhook event, even if all messages are sent in a single batch.

• The value of a few parameters ( such as messages, content, button etc)  is a stringified JSON array so make sure your Webhook is capable of receiving such data.

Step 4: The content type will be JSON. Make sure your endpoint can parse JSON data.

Step 5. Customize Parameters

Include only the fields that you want to receive on your Webhook. Below is the sample payload, which has all the parameters; you can remove the parameters that are not of your use.

{

  "CRQID": "{{CRQID}}",

  "companyId": "{{companyId}}",

  "requestedAt": "{{requestedAt}}",

  "mobile": "{{mobile}}",

  "content": "{{content}}",

  "requestId": "{{requestId}}",

  "failureReason": "{{failureReason}}",

  "status": "{{status}}",

  "uuid": "{{uuid}}",

  "integratedNumber": "{{integratedNumber}}",

  "messageType": "{{messageType}}",

  "direction": "{{direction}}",

  "templateName": "{{templateName}}",

  "campaignName": "{{campaignName}}",

  "campaignRequestId": "{{campaignRequestId}}",

  "nodeId": "{{nodeId}}",

  "templateLanguage": "{{templateLanguage}}",

  "replyMsgId": "{{replyMsgId}}",

  "accountManagerEmailId": "{{accountManagerEmailId}}",

  "oneApiRequestId": "{{oneApiRequestId}}",

  "emailId": "{{emailId}}",

  "conversationExpTimestamp": "{{conversationExpTimestamp}}",

  "moengageMsgId": "{{moengageMsgId}}",

  "webengageMsgId": "{{webengageMsgId}}",

  "clevertapMsgId": "{{clevertapMsgId}}",

  "telecomCircle": "{{telecomCircle}}",

  "circleDescription": "{{circleDescription}}",

  "customerName": "{{customerName}}",

  "contentType": "{{contentType}}",

  "text": "{{text}}",

  "latitude": "{{latitude}}",

  "longitude": "{{longitude}}",

  "caption": "{{caption}}",

  "filename": "{{filename}}",

  "url": "{{url}}",

  "button": "{{button}}",

  "contacts": "{{contacts}}",

  "reaction": "{{reaction}}",

  "interactive": "{{interactive}}",

  "order": "{{order}}",

  "messages": "{{messages}}",

  "price": "{{price}}",

  "origin": "{{origin}}",

  "statusUpdatedAt": "{{statusUpdatedAt}}"

}

Description of the parameters:

• requestId
  Unique ID generated for each message request.
  Example: "requestId": "87b3c7e4d9914fffa8ccb85ca13e6c8e"



• mobile
  User’s mobile number.
  Example: "mobile": "91774884090"



• status
  Message status – Sent / Delivered / Failed / Read.
  Example: "status": "delivered"



• content
  Content of the message.

  • Inbound: You will receive the complete message text.
    Example: "content": "{\"text\":\"Hi, I have a query\"}"

  • Outbound: You will receive the data you passed in the variables.
    Example: "content": "{\"header_1\":{\"type\":\"document\",\"document\":{\"link\":\"

    https://files.msg91.com/377775/nronwttaaa\",\"filename\":\"Test1\"}},\"body_1\":{\"type\":\"text\",\"text\":\"Test2\"},\"body_2\":{\"type\":\"text\",\"text\":\"Test3\"},\"body_3\":{\"type\":\"text\",\"text\":\"Test4\"}

    }"

• messages
  Provides inbound message details such as the sender number, WhatsApp message ID, content type, and actual text received. It will be blank for outbound messages.
  Example: "messages": "[{\"context\":{\"from\":\"917316914325\",\"id\":\"wamid.HBgMOTE3NzQ4ODQ3OTkwFQIAERgSQ0Q1MDZGMDQ4OEZBNjRGRTE5AA==\"},\"from\":\"917748847990\",\"id\":\"wamid.HBgMOTE3NzQ4ODQ3OTkwFQIAEhggN0M0MzBBRTg3NjAyQ0E4RDhDQTU5MDA1QkJFQzI2NEMA\",\"timestamp\":\"1751878238\",\"type\":\"button\",\"button\":{\"payload\":\"Stop\",\"text\":\"Stop\"}}]"

• failureReason
  If a message fails, this field shows the reason including error code and description.
  Example: "failureReason": "131049: This message was not delivered to maintain healthy ecosystem engagement."



• button
  Response text for quick reply buttons.
  Example: "button": "{\"payload\":\"Stop\",\"text\":\"Stop\"}"



• integratedNumber
  Your integrated WhatsApp business number.
  Example: "integratedNumber": "917316914325"



• direction
  Message direction – 1 for Outbound, 0 for Inbound.
  Example: "direction": "0"



• templateName
  Name of the WhatsApp message template used.
  Example: "templateName": "order_status"



• CRQID
  A custom parameter you can pass in the API payload. You will receive the same value in the webhook.
  Example: "CRQID": "Inactive_users"



• companyId
  Unique ID of your company for identifying your MSG91 account.
  Example: "companyId": "384905"



• requestedAt
  Timestamp of when the message request was initiated from your end.
  Example: "requestedAt": "2025-07-08 08:20:26.259000"



• statusUpdatedAt
  Timestamp of the latest message status update.



  • If the status is Delivered, this is the delivery time.

    Example: "statusUpdatedAt": "2025-07-08 07:41:13"



  • If the status is Sent, this reflects the sent time.
    Example: "statusUpdatedAt": "2025-07-08 07:41:13"



• messageType
  Type of message received – text, interactive, or template.
  Example: "messageType": "text"



• Uuid
  Unique ID for every message generated by Meta.
  Example: "Uuid": "wamid.HBgMOTE3NzQ4ODQ3OTkwFQIAERgSMEE4MjFCNkI5QkU4RTY5NEM5AA=="



• campaignName
  Name of your campaign if sent via MSG91’s Campaign service.
  Example: "campaignName": "jul8test1"



• campaignRequestId
  Unique request ID of your campaign.
  Example: "campaignRequestId": "1751960463_0b863cfb12a2293657f1f46ebf1cc546"



• templateLanguage
  Language of your WhatsApp template.
  Example: "templateLanguage": "en_US"



• accountManagerEmailId
  Email ID of your MSG91 account manager.
  Example: "accountManagerEmailId": "

  [email protected]

  "



• telecomCircle
  The telecom circle of the customer’s mobile number.
  Example: "telecomCircle": "Madhya Pradesh & Chhattisgarh"



• circleDescription
  Description of the telecom circle.
  Example: "circleDescription": "State of Madhya Pradesh and State of Chhattisgarh"



• customerName
  Name of the customer who has sent the message.
  Example: "customerName": "Manas"



• price
  Charge deducted for sending the template.
  Example: "price": "0.115"



• origin
  Category of your WhatsApp template.
  Example: "origin": "utility"



• replyMsgId
  Unique WhatsApp message ID of the template the user replied to or interacted with.
  Example: "replyMsgId": "wamid.HBgMOTE3NzQ4ODQ3OTkwFQIAERgSRUJGN0JCOTBBMUY5RUJGMEY3AA=="



• contentType
  Type of content received in inbound messages – text, image, interactive, etc.



• contacts
  Contact details of the user stored in your Segmento phonebook.
  Example: "contacts": "[{\"profile\":{\"name\":\"Manas\"},\"wa_id\":\"91774884730\"}]"



• text
  Exact text of the message received on your number.
  Example: "text": "Contact store"



• latitude
  Latitude of the location shared in an inbound message.
  Example: "latitude": "22.7252947"



• longitude
  Longitude of the location shared in an inbound message.
  Example: "longitude": "75.8905714"

• filename
  The file name of the attachment.
  Example: "filename": Invoice June 2025"

• nodeId
  Node ID of your MSG91 campaign.
  Example: "nodeId": "88353"

• reaction
  The user’s reaction to your message or template.

  The Emoji will be sent in Unicode, so please ensure your webhook is capable of receiving

  such data.
  Example: "reaction": "👍🏻"

• emailId
  Registered email ID of your MSG91 account
  Example: ”emailId": "

  [email protected]

  "

• oneApiRequestId
  Request ID if you sent it via One API.

• webengageMsgId
  Unique ID of the message if the message was sent via WebEngage

• clevertapMsgId
  Unique ID of the message if the message was sent via Clevertap.

• moengageMsgId:
  Unique ID of the message if the message was sent via MoEngage.

Sample Webhook payload of an Outbound message:

{

  "CRQID": "",

  "companyId": "384905",

  "requestedAt": "2025-07-08 07:41:12.697000",

  "mobile": "9179993700",

  "content": "{\"body_1\":{\"type\":\"text\",\"text\":\"Aniket\"}}",

  "requestId": "e0168ppab9e4c80b7bbb7705ad915c5",

  "failureReason": "",

  "status": "Delivered",

  "uuid": "wamid.HBgMOTE3OTk5MzcwODU4FQIAERgSNkI2RjBCQTk1QTc5Mjc0N0U5AA==",

  "integratedNumber": "917316914325",

  "messageType": "template",

  "direction": "1",

  "templateName": "order_status",

  "campaignName": "jul8test1",

  "campaignRequestId": "1751960463_0b863cfb12a2293657f1f46ebf1cc546",

  "nodeId": "88353",

  "templateLanguage": "en_US",

  "replyMsgId": "",

  "accountManagerEmailId": "

[email protected]

  "oneApiRequestId": "",

  "emailId": "

[email protected]

  "conversationExpTimestamp": "",

  "moengageMsgId": "",

  "webengageMsgId": "",

  "clevertapMsgId": "",

  "telecomCircle": "Madhya Pradesh & Chhattisgarh",

  "circleDescription": "State of Madhya Pradesh and State of Chhattisgarh",

  "customerName": "",

  "contentType": "",

  "text": "",

  "latitude": "",

  "longitude": "",

  "caption": "",

  "filename": "",

  "url": "",

  "button": "",

  "contacts": "",

  "reaction": "",

  "interactive": "",

  "order": "",

  "messages": "",

  "price": "0.115",

  "origin": "utility",

  "statusUpdatedAt": "2025-07-08 07:41:13"

}

Sample Webhook payload for an Inbound message:

{

  "CRQID": "",

  "companyId": "384905",

  "requestedAt": "2025-07-08 08:06:38.064000",

  "mobile": "91774841190",

  "content": "{\"button_reply\":\"Contact store\"}",

  "requestId": "87b3c7e4d9914fffa8ccb85ca13e6c8e",

  "failureReason": "",

  "status": "delivered",

  "uuid": "wamid.HBgMOTE3NzQ4ODQ3OTkwFQIAEhggNENGQzYxMDk5NTg2MUQ5NjQ1REMzQzNBODRBMDM1RkMA_hello",

  "integratedNumber": "917316914325",

  "messageType": "interactive",

  "direction": "0",

  "templateName": "",

  "campaignName": "",

  "campaignRequestId": "",

  "nodeId": "",

  "templateLanguage": "",

  "replyMsgId": "wamid.HBgMOTE3NzQ4ODQ3OTkwFQIAERgSNDQ1N0RCRjJGRTA3NThEMzE3AA==",

  "accountManagerEmailId": "",

  "oneApiRequestId": "",

  "emailId": "",

  "conversationExpTimestamp": "",

  "moengageMsgId": "",

  "webengageMsgId": "",

  "clevertapMsgId": "",

  "telecomCircle": "Madhya Pradesh & Chhattisgarh",

  "circleDescription": "State of Madhya Pradesh and State of Chhattisgarh",

  "customerName": "Manas ",

  "contentType": "interactive",

  "text": "Contact store",

  "latitude": "",

  "longitude": "",

  "caption": "",

  "filename": "",

  "url": "",

  "button": "",

  "contacts": "[{\"profile\":{\"name\":\"Manas \"},\"wa_id\":\"917748847990\"}]",

  "reaction": "",

  "interactive": "",

  "order": "",

  "messages": "[{\"context\":{\"from\":\"917316914325\",\"id\":\"wamid.HBgMOTE3NzQ4ODQ3OTkwFQIAERgSNDQ1N0RCRjJGRTA3NThEMzE3AA==\"},\"from\":\"917748847990\",\"id\":\"wamid.HBgMOTE3NzQ4ODQ3OTkwFQIAEhggNENGQzYxMDk5NTg2MUQ5NjQ1REMzQzNBODRBMDM1RkMA\",\"timestamp\":\"1751961996\",\"type\":\"interactive\",\"interactive\":{\"type\":\"button_reply\",\"button_reply\":{\"id\":\"0670fbb8-46c7-4bca-9c2f-687243ee751c\",\"title\":\"Contact store\"}}}]",

  "price": "",

  "origin": "",

  "statusUpdatedAt": ""

}

You can also add the Headers in the key-value pairs, and then we will send all the reports including these Headers:

Step 6: Click Create to save your webhook configuration.

Still have questions?

Feel free to reach us at +91 8818888733 via call or WhatsApp or drop an email to

[email protected]

To receive delivery reports for your SMS, you can use the Webhook (New) feature on the MSG91 platform. Follow the steps below to set it up.

1. Log in to your MSG91 Dashboard » SMS » Webhook (New) » Click on Create Webhook.

2. Configure Your Webhook.

Step 1: Provide a name to your webhook.

Step 2: Select SMS and the event type you wish to receive:

On Request Received: Triggers when an SMS request is sent from your account.

Provides logs, but does not include delivery status.

On Report Received: Provides real-time delivery reports, including success/failure status and additional details.

Note: To receive both event types, you must create two separate webhooks.

Step 3: Enter your Webhook URL (Callback URL) where data should be sent.

• When you send bulk messages, the webhook will still send one log (payload) per recipient number. This means for each mobile number, you will receive a separate webhook event, even if all messages are sent in a single batch.

• The value of a few parameters is a stringified JSON array, so make sure your Webhook is capable of receiving such data.

Content-Type: Only JSON is supported. Ensure your endpoint can parse JSON data in any format.

Step 4. Customize Data Parameters

Use { to add fields/ parameters you want to receive.

You can include or exclude fields as needed. Ensure parameters follow valid JSON formatting.

Below is the sample payload, which has all the fields:

{

  "requestedAt": "{{requestedAt}}",

  "status": "{{status}}",

  "deliveryTime": "{{deliveryTime}}",

  "requestId": "{{requestId}}",

  "telNum": "{{telNum}}",

  "credit": "{{credit}}",

  "senderId": "{{senderId}}",

  "campaignName": "{{campaignName}}",

  "scheduleDateTime": "{{scheduleDateTime}}",

  "msgData": "{{msgData}}",

  "route": "{{route}}",

  "DLT_TE_ID": "{{DLT_TE_ID}}",

  "campaign_pid": "{{campaign_pid}}",

  "nodeId": "{{nodeId}}",

  "userIp": "{{userIp}}",

  "clientId": "{{clientId}}",

  "UUID": "{{UUID}}",

  "INMSID": "{{INMSID}}",

  "CRQID": "{{CRQID}}",

  "countryName": "{{countryName}}",

  "failureReason": "{{failureReason}}",

  "smsLength": "{{smsLength}}",

  "telecomCircle": "{{telecomCircle}}",

  "circleDescription": "{{circleDescription}}",

  "user_pid": "{{user_pid}}"

}

Description of the parameters:

• requestId
  Unique ID generated for each message request.
  Example: "requestId": "686e0471d6fc0577de5d4462"


• telNum
  The user’s mobile number.
  Example: "telNum": "91774884090"

• deliveryTime
  Timestamp of when the SMS was delivered from your end.
  Example: "deliveryTime": "2025-07-09 11:29:46"

• requestedAt
  Timestamp of when the message request was initiated from your end.
  Example: "requestedAt": "2025-07-08 08:20:26.259000"

• status
  Message status – Sent / Delivered / Failed / Read.

0 = Sent

1 = Delivered

2 = Failed
Example: "status": "1"

• credit
  Total charges deducted for the SMS sent.
  Example: "credit": "0.20"


• senderId
  Sender ID used to send the SMS.
  Example: "senderId": "txtapi

• campaignName
  Name of your campaign. It will show the Sender ID if there is no campaign name.
  Example: "campaignName": "TXTAPI"


• scheduleDateTime
  The date and time of the message when it was scheduled. You will receive this field only when the message has been scheduled.
  Example: "scheduleDateTime": "2025-07-09 11:57:34"


• route
  The route of the message through which the message was sent. 4 is for Transactional and 1 for Promotional
  Example: "route": "4"


• DLT_TE_ID
  DLT Template ID of your message.
  Example: "DLT_TE_ID": "1748558999665865"

• CRQID
  A custom parameter you can pass in the API payload. You will receive the same value in the webhook.
  Example: "CRQID": "Inactive_users"

• failureReason
  The reason for the failure of your SMS.
  Example: "failureReason": "Template Id not found on DLT"

• smsLength
  Number of credits deducted based on the character count of your SMS
  Example: "smsLength": "2"

• telecomCircle
  The telecom circle of the customer’s mobile number.
  Example: "telecomCircle": "Madhya Pradesh & Chhattisgarh"

• circleDescription
  Description of the telecom circle.
  Example: "circleDescription": "State of Madhya Pradesh and State of Chhattisgarh"

• countryName
  Name of the country to which the SMS was sent.
  Example: "countryName": "India"

• user_pid
  Unique company ID of your MSG91 account.
  Example: "user_pid": "390635"

• campaign_pid
  Unique ID generated at our end for every campaign name.
  Example: "campaign_pid": "63ede36abb011b34dd35800c"

• msgData
  It is only for the event type “Request Received” (Request Sent), it will show all the details related to the message.
  Example: "msgData": "{\n  \"requestedAt\": \"\",\n  \"status\": \"1\",\n  \"deliveryTime\": \"2025-07-09 11:27:17\",\n  \"requestId\": \"686e04777d6fc0577de5d4462\",\n  \"telNum\": \"91774817990\",\n  \"credit\": \"0.01\",\n  \"senderId\": \"txtapi\",\n  \"campaignName\": \"\",\n  \"scheduleDateTime\": \"\",\n  \"msgData\": \"\",\n  \"route\": \"931\",\n  \"DLT_TE_ID\": \"\",\n  \"campaign_pid\": \"\",\n  \"nodeId\": \"\",\n  \"userIp\": \"\",\n  \"clientId\": \"\",\n  \"UUID\": \"0\",\n  \"INMSID\": \"0\",\n  \"CRQID\": \"0\",\n  \"countryName\": \"India\",\n  \"failureReason\": \"\",\n  \"smsLength\": \"1\",\n  \"telecomCircle\": \"Madhya Pradesh & Chhattisgarh\",\n  \"circleDescription\": \"State of Madhya Pradesh and State of Chhattisgarh\",\n  \"user_pid\": \"390635\"\n}"

• UUID
  It’s a custom parameter; whatever data you pass in the API under this field, we will deliver the same key-value pair on the webhook.
  Example: "UUID": "Campaign_July"

• clientId
  It’s also a custom parameter; whatever data you pass in the API under this field, the same data will be pushed to the Webhook.
  Example: "clientId": "4343878"

• INMSID
  This parameter is for back-end tracking on our end; kindly ignore this parameter.
  Example: "INMSID": ""

• nodeId
  Node ID of the campaign if you used the Campaign service to launch the campaign.
  Example: "nodeId": "88449"

• userIp
  IP address from which the request was sent.
  Example: "userIp": "2600:1700:0:3002::900"


Sample payload of the data received on Webhook:

{

  "requestedAt": "",

  "status": "1",

  "deliveryTime": "2025-07-09 11:21:54",

  "requestId": "686e0376d6fc0523f4226eb2",

  "telNum": "917748847990",

  "credit": "0.25",

  "senderId": "txtapi",

  "campaignName": "",

  "scheduleDateTime": "",

  "msgData": "",

  "route": "4",

  "DLT_TE_ID": "17558945588965886",

  "campaign_pid": "",

  "nodeId": "",

  "userIp": "",

  "clientId": "",

  "UUID": "0",

  "INMSID": "0",

  "CRQID": "0",

  "countryName": "India",

  "failureReason": "",

  "smsLength": "1",

  "telecomCircle": "Madhya Pradesh & Chhattisgarh",

  "circleDescription": "State of Madhya Pradesh and State of Chhattisgarh",

  "user_pid": "390635"

}

Headers:

You can also add the Headers in the key-value pairs, and then we will send all the reports including these Headers. You can also filter the data on your webhook based on a Header.

3. Click Create to save your Webhook configuration.

Still have questions?

Call or WhatsApp: +91 8818888733
Email:

[email protected]

You can use the Webhook feature on the MSG91 platform to receive delivery reports for your Outbound and Inbound Voice calls. Follow the steps below to set it up.

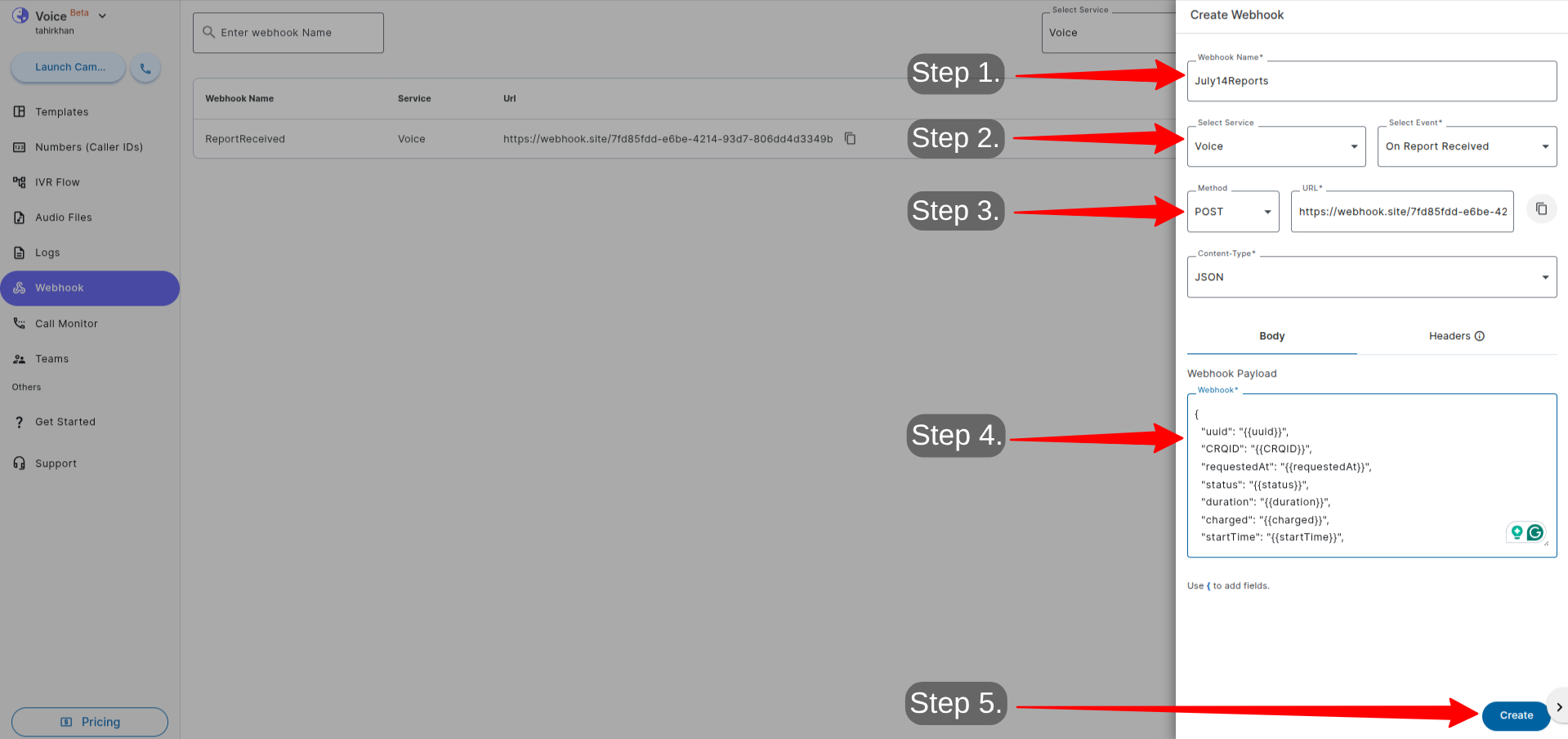

1. Log in to your MSG91 Dashboard » Voice » Webhook » Click on Create Webhook.

2. Configure Your Webhook

Step 1. Provide a name to your webhook.

Step 2. Select Voice and the event type “Report Received.”

This event type will provide real-time delivery reports of your outbound and inbound calls, including success/failure status and additional details.

Step 3. Select the Method as Post and enter your Webhook URL (Callback URL) where you want to receive reports.

Step 4. Customize Data Parameters:

Use { to add fields/ parameters you want to receive.

You can include or exclude fields as needed. Ensure parameters follow valid JSON formatting.

Example JSON payload that has all the available parameters:

{

  "uuid": "{{uuid}}",

  "CRQID": "{{CRQID}}",

  "requestedAt": "{{requestedAt}}",

  "status": "{{status}}",

  "duration": "{{duration}}",

  "charged": "{{charged}}",

  "startTime": "{{startTime}}",

  "endTime": "{{endTime}}",

  "destination": "{{destination}}",

  "type": "{{type}}",

  "ivrInputs": "{{ivrInputs}}",

  "callerId": "{{callerId}}",

  "agentId": "{{agentId}}",

  "destinationB": "{{destinationB}}",

  "failureReason": "{{failureReason}}",

  "direction": "{{direction}}",

  "agentName": "{{agentName}}",

  "source": "{{source}}"

}

Description of the parameters:

• uuid
  Unique reference ID that gets generated at our end for every call request.
  Example: "uuid": "8ee1c0bcd7664939a3c92359b3328272"


• CRQID
  A custom parameter you can pass in the API body. You will receive the same value in the webhook.
  Example: "CRQID": "MSG91_Voice"

• requestedAt
  Timestamp when an outbound or inbound call was initiated.
  Example: "requestedAt": "2025-07-14 09:23:27"

• status
  Status of your call - Queued/ Completed/ Ringing/ Failed/ Busy
  Example: "status": "delivered"

• duration
  Duration of the call in seconds.
  Example: "duration": "19"

• charged
  Charge deducted for your voice call.
  Example: "charged": "0.500000"

• startTime
  Timestamp when the call (ring) was started.
  Example: "startTime": "2025-07-14 08:49:06”

• endTime
  Timestamp when the call was ended.
  Example: "endTime": "2025-07-14 08:49:29"

• destination
  The number to which the call was initiated. If you have used the click-to-call API, then it will show the number passed under destination A.
  Example: "destination": "91774884XXXX”

• type
  The mode you used to call - Hello/API.
  Example: "type": "api”

• ivrInputs
  Sequence of the IVR Inputs (numbers) pressed by the user.
  Example: "ivrInputs": " 1 9 4 99266036XX"

• callerId
  MSG91 Caller ID (Number) you used to make a call.
  Example: "callerId": "917316914325"

• agentId
  ID of the agent (member in Hello) who either initiated the call or received it.
  Example: "agentId": "395729"

• destinationB
  If you used the click-to-call API, then it will show the number passed under the destination B.
    Example: "destinationB": "918818888733"

• failureReason
  The reason due to which the call failed.
  Example: "failureReason": "User Unreachable"

• direction
  Direction of the call - Outbound/Inbound
  Example: "direction": "outbound"

• agentName
  Name of the agent (member’s name in Hello) who either initiated the call or received it.
  Example: "agentName": "Manas Patel"

• source
  For outbound calls:

"0" indicates the call was initiated from the Panel (Dashboard)

"1" indicates the call was initiated via API
Example: "source": "1"

          For inbound calls:

Displays the user’s mobile number who initiated the call
Example: "source": "917748847XXX"

Sample payload of the data received on Webhook:

{

  "uuid": "8ee1c0bcd7664939a3c92359b3328272",

  "CRQID": "MSG91_voice",

  "requestedAt": "2025-07-14 08:49:06",

  "status": "completed",

  "duration": "11",

  "charged": "0.500000",

  "startTime": "2025-07-14 08:49:06",

  "endTime": "2025-07-14 08:49:29",

  "destination": "917748847XXX",

  "type": "api",

  "ivrInputs": "",

  "callerId": "917316914325",

  "agentId": "410079",

  "destinationB": "",

  "failureReason": "",

  "direction": "outbound",

  "agentName": "Manas Patel",

  "source": "1"

}

You can also add the Headers in the key-value pairs, and we will send all the reports including these Headers:

Step 5. Click Create to save the Webhook.

Still have questions?
Feel free to reach us at +91 8818888733 via call or WhatsApp, or drop an email to

[email protected]

You can use the Webhook (New) feature on the MSG91 platform to receive delivery reports for your RCS messages. Follow the steps below to set it up.

1. Log in to your MSG91 Dashboard » Email » Webhook » Click on Create Webhook.

2. Configure Your Webhook

Step 1. Provide a name to your webhook.

Step 2. Select RCS and the event type you wish to receive:

On Report Received:

• Triggers to send the delivery reports of both inbound and outbound messages.

On Inbound Report Received:

• Triggers to send the delivery reports of the inbound messages.

On Outbound Report Received:

• Triggers to send the delivery reports of outbound messages.

Step 3: Enter your Webhook URL (Callback URL) where data should be sent.

Use { to add fields/ parameters you want to receive.

You can include or exclude fields as needed. Ensure parameters follow valid JSON formatting.

Example JSON payload that has all the parameters:

{

  "CRQID": "{{CRQID}}",

  "requestedAt": "{{requestedAt}}",

  "companyId": "{{companyId}}",

  "status": "{{status}}",

  "projectId": "{{projectId}}",

  "clientName": "{{clientName}}",

  "customerNumber": "{{customerNumber}}",

  "messageType": "{{messageType}}",

  "direction": "{{direction}}",

  "templateName": "{{templateName}}",

  "failureReason": "{{failureReason}}",

  "content": "{{content}}",

  "requestId": "{{requestId}}",

  "uuid": "{{uuid}}",

  "helloStatus": "{{helloStatus}}",

  "callbackStatus": "{{callbackStatus}}",

  "statusUpdatedAt": "{{statusUpdatedAt}}",

  "deliveryTime": "{{deliveryTime}}",

  "readTime": "{{readTime}}",

  "type": "{{type}}",

  "price": "{{price}}",

  "nodeId": "{{nodeId}}",

  "campaignRequestId": "{{campaignRequestId}}",

  "telecomCircle": "{{telecomCircle}}",

  "circleDescription": "{{circleDescription}}",

  "webengageMsgId": "{{webengageMsgId}}"

}

Description of the parameters:

• CRQID
  A custom parameter you can pass in the API payload. You will receive the same value in the webhook.
  Example: "CRQID": "MSG91_RCS""

• requestedAt
  Timestamp of when the message request was initiated from your end..
  Example: "requestedAt": "2025-07-11 09:44:49.265000"

• companyId
  Unique account ID of your MSG91 account.
  Example: "companyId": "396301"

• status
  Status of your message - Submitted / Sent / Delivered/ Read/ Failed
  Example: "status": "delivered"

• projectId
  Unique project ID of your RCS account.
  Example: "projectId": "1a6caf23-0c6c-4b41-8fe2-1c28bb69434”

• clientName
  Name of your RCS Bot (RCS account).
  Example: "clientName": "Mystic_Transactional"

• customerNumber
  The user’s mobile number to which you sent the message.
  Example: "customerNumber": "917748847XXX”

• messageType
  The type of message you sent - Template/text_message.
  Example: "messageType": "text_message"

• direction
  Direction of the message - Outbound / Inbound.
  Example: "direction": "outbound"

• templateName
  Name of your RCS template.
  Example: "templateName": "JulyfirstSale”

• failureReason
  The reason due to which the message failed.
  Example: "failureReason": "Unreachable number"

• content
  The content of the inbound message. It will be blank in case of an outbound message.
  Example: "content": "{\"text\":\"Hi\"}"

• requestId
  Unique ID generated on our end for every request.
  Example: "requestId": "afb620165e3b11f092970aebd39cf801"

• uuid
  Unique reference ID of an inbound message.
  Example: "uuid": "afd799b25e3b11f0843402e26b2b6f99"

• helloStatus
  Inbound message delivery event of hello, currently it will be blank, as RCS integration is not available in Hello.
  Example: "helloStatus": ""

• callbackStatus
  Inbound message delivery event to the user webhook.
  Example: "callbackStatus": ""

• statusUpdatedAt
  Timestamp when the latest status of the message was updated.
  Example: "timestamp": "2025-07-11 09:44:52.815069+00:00"

• type
  Type of the template - Transactional/ Promotional
  Example: "type": "transactional"

• price
  Charge deducted for sending the template.
  Example: "price": "0.12"

• nodeId
  Node ID of your MSG91 campaign (If sent via Campaign Service).
  Example: "nodeId": "336744"

• campaignRequestId
  Unique request ID of your campaign (If sent via Campaign Service).
  Example: "campaignRequestId": "rg4554ygthf84f9egjgu4"

• telecomCircle
  The telecom circle of the customer’s mobile number
  Example: "telecomCircle": "Madhya Pradesh & Chhattisgarh"

• circleDescription
  Description of the telecom circle.
  Example: "circleDescription": "State of Madhya Pradesh and State of Chhattisgarh"

• webengageMsgId
  Unique ID of the message if the message was sent via WebEngage
  Example: "webengageMsgId": ""

Sample payload of the report received on Webhook for an Outbound message:

{

  "CRQID": "",

  "requestedAt": "2025-07-14 08:10:29.156751+00:00",

  "companyId": "396301",

  "status": "submitted",

  "projectId": "1a6caf23-0c6c-4b41-8fe2-1c28bb694335",

  "clientName": "JIOTrans_testing",

  "customerNumber": "9177488479XX",

  "messageType": "template",

  "direction": "outbound",

  "templateName": "sid_temp_test",

  "failureReason": "",

  "content": "{}",

  "requestId": "01436aec608a11f0aabc02924bf4bca3",

  "uuid": "016ad56e608a11f0a79802d90244603d",

  "helloStatus": "",

  "callbackStatus": "",

  "statusUpdatedAt": "2025-07-14 08:10:29.156751+00:00",

  "deliveryTime": "",

  "readTime": "",

  "type": "transactional",

  "price": "",

  "nodeId": "",

  "campaignRequestId": "",

  "telecomCircle": "Madhya Pradesh & Chhattisgarh",

  "circleDescription": "State of Madhya Pradesh and State of Chhattisgarh",

  "webengageMsgId": ""

}

Sample payload of the report received on Webhook for an Inbound message:

{

  "CRQID": "",

  "requestedAt": "2025-07-16 07:42:06.938000+00:00",

  "companyId": "396301",

  "status": "delivered",

  "projectId": "v9u5v4DQcRzYcGoJ",

  "clientName": "MSG91_RCS_TRANSACTIONAL",

  "customerNumber": "9177488479XX",

  "messageType": "text_message",

  "direction": "inbound",

  "templateName": "",

  "failureReason": "",

  "content": "{\"text\":\"Heyy\"}",

  "requestId": "",

  "uuid": "3e07f5b9-4bcc-4763-9d86-8d3bffe4a466",

  "helloStatus": "",

  "callbackStatus": "",

  "statusUpdatedAt": "2025-07-16 07:42:06.938000+00:00",

  "deliveryTime": "",

  "readTime": "",

  "type": "",

  "price": "",

  "nodeId": "",

  "campaignRequestId": "",

  "telecomCircle": "Madhya Pradesh & Chhattisgarh",

  "circleDescription": "State of Madhya Pradesh and State of Chhattisgarh",

  "webengageMsgId": ""

}

You can also add the Headers in the key-value pairs, and we will send all the reports including these Headers:

Step 5. Click Create to save the Webhook.

Still have questions?

Feel free to reach us at +91 8818888733 via call or WhatsApp, or drop an email to

[email protected]
